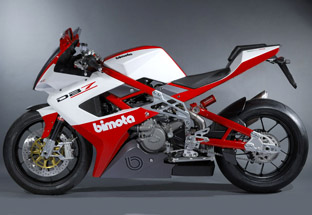

Bimota DB7


Bimota DB7

Bimota DB7

Bimota DB7

Year of specifications 2008
Engine 1098 cc, L twin cylinder
Transmission 6-speed, chain
Top speed -
0-60 MPH -
Horsepower 160 hp
Weight 170 kgs / 375 lbs
Seat height 800 mm / 31.5 inches

The Bimota DB7 was unveiled at the 2007 Milan Motor Show. The DB7 is powered by the same twin-cylinder engine found in the Ducati 1098.

The chassis of the Bimota DB7 consists of a hybrid oval tube trellis frame and swing arm. The rear swingarm is connected directly to the engine, and uses a Extreme Tech monoshock (which was developed in conjunction with Bimota) to make up the rear suspension. The front suspension is handled by Marzocchi Corse 43mm forks with DLC (Diamond Like Coating) treatment which provides smooth, predictable compression.

The Bimota DB7's front brakes consist of twin 320mm discs working with Brembo four piston calipers. At the rear a 230mm disc is gripped by a Brembo 2 piston caliper.

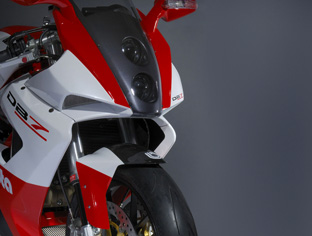

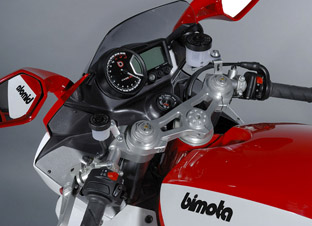

The top section of the Bimota DB7's fairing is formed from carbon fiber, as is the tail section, to help reduce weight. The use of self-supporting carbon fibre in these areas means that there is no need for separate subframes to support the clocks and headlights, and the seat unit.
