Buell 1125R Superbike


Buell 1125R Superbike

Buell 1125R Superbike

Buell 1125R Superbike

Buell 1125R Superbike

Buell 1125R Superbike

Year of specifications 2008
Engine 1125 cc, DOHC, Helicon V-twin
Transmission 6-speed, belt
Top speed -
0-60 MPH -
Horsepower 146 hp @ 9800 rpm
Weight 170 kg / 375 lbs
Seat height 775 mm / 30.5 inches

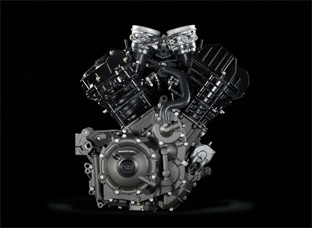

The new for 2008 Buell 1125R superbike is powered by the first water-cooled Buell since the company's first bike. The 72 degree V-twin comes from the Austrian firm Rotax, and develops 146 hp and 82 ft-lbs of torque at 8000 rpm.

Like all Buell motorbikes the 1125R is unconventional in its design. Fuel is carried in the frame, the exhaust is positioned low and exits just before the rear wheel, there are two radiators one positioned either side of the engine, and the final drive is via belt instead of chain.


Buell 1125R highlights:


Frame - Aluminum frame, fuel carried in frame

Suspension - Front, 47 mm Showa inverted forks with adjustable compression damping, rebound damping and spring preload.
Rear, Showa coil over monoshock with adjustable compression damping, rebound damping and spring preload

Brakes - Front, ZTL™-type brake, 8-piston, fixed caliper, 375 mm single sided, inside out, stainless steel, floating rotor. Rear, Two-piston, direct mount caliper, 240 mm stainless steel, fixed rotor

Exhaust - Tuned, tri-pass resonance chamber with integral helmholtz tuning and mass-centralized mounting

Instruments - Instrument cluster with ODIS (Onboard Diagnostic Information System) featuring Analog tachometer with integrated shift light, digital speedometer on LED display, odometer, ODIS service code display, 4-digit security system with ignition immobiliser, lap timer (records up to 99 lap times) and splits, ambiant air temperature, coolant temperature, average and instantaneous fuel consumption, miles to next service display, low fuel (plus miles traveled on reserve); high beam, neutral, turn signals; clock
