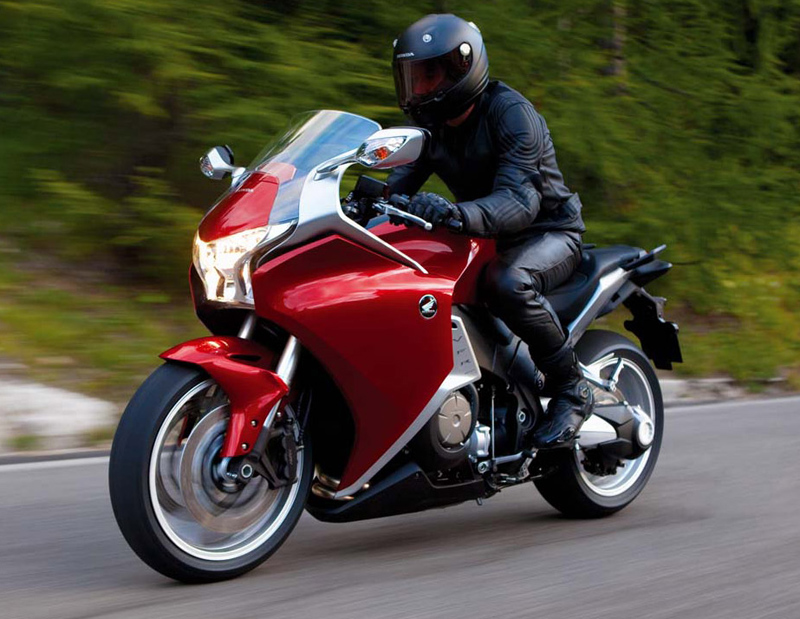

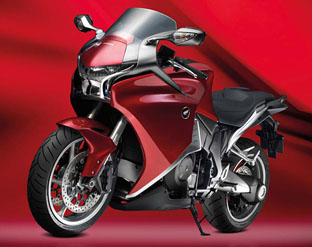

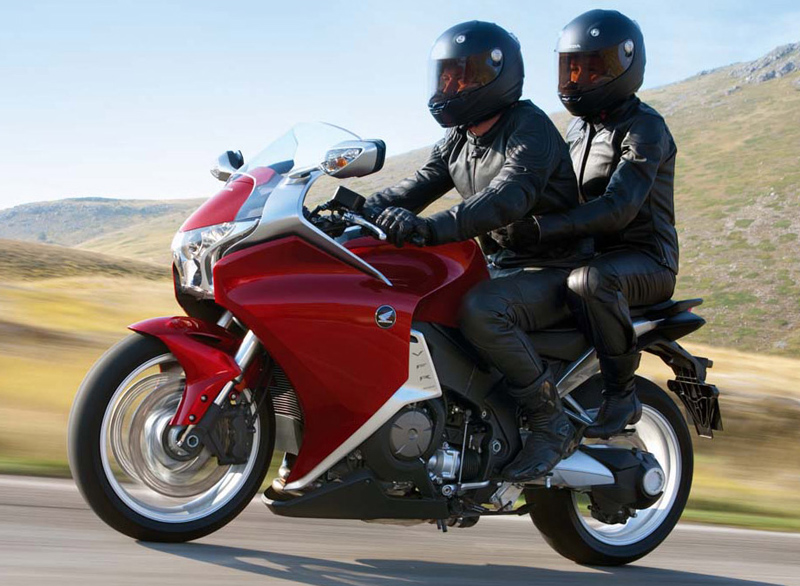

2010 Honda VFR1200F

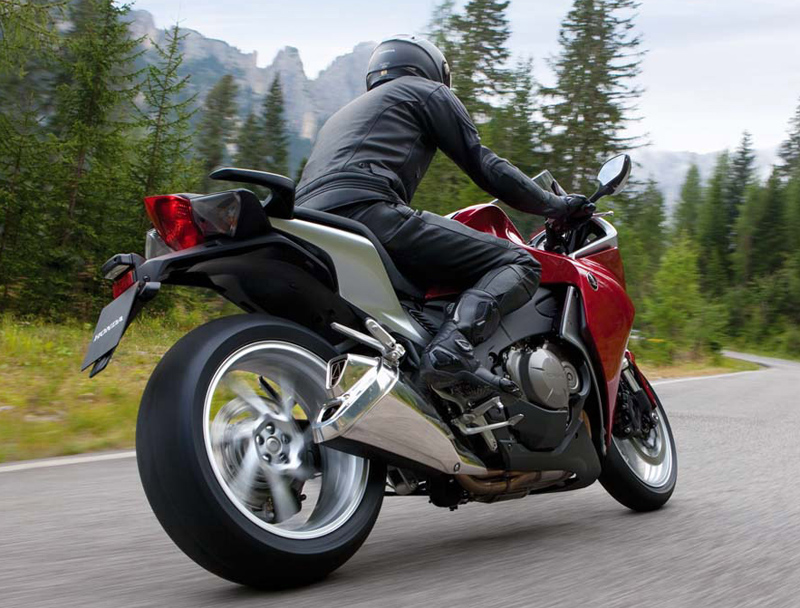

2010 Honda VFR1200F

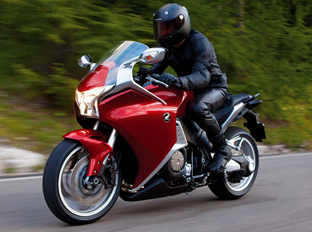

2010 Honda VFR1200F

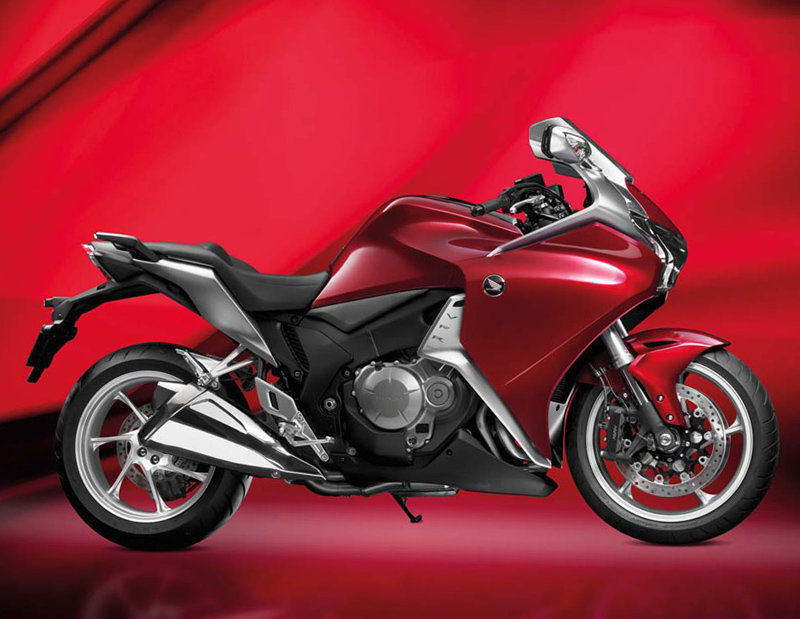

2010 Honda VFR1200F

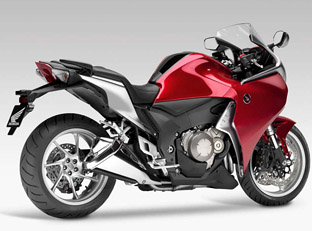

2010 Honda VFR1200F

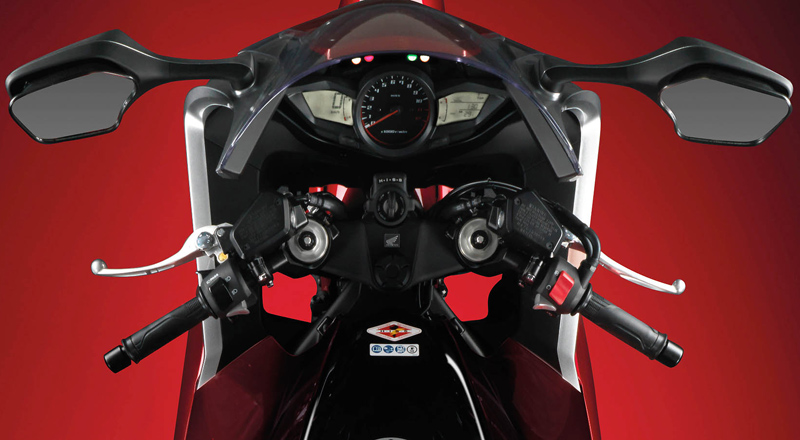

2010 Honda VFR1200F

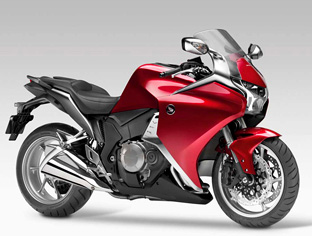

2010 Honda VFR1200F

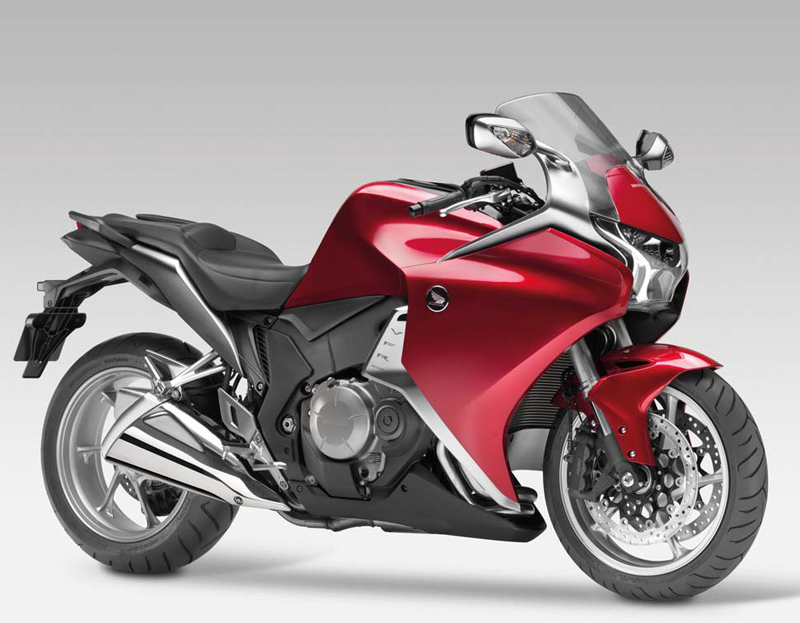

2010 Honda VFR1200F

Year of specifications 2010
Engine 1,237 cc V-4
Transmission 6-speed, shaft final drive
Top speed -
0-60 MPH -
Horsepower 172 hp @ 10,000 rpm
Weight 267 kgs / 588 kgs
Seat height 815 mm / 32 inches

The 2010 Honda VFR1200F is one of the most anticipated Honda products in recent years. The bike not only previews Honda motorcycle's new design language, but it also features Honda's new V-4 engine.

The VFR1200F is the replacement model for the VFR800, and uses some of the styling cues first seen on the Honda V4 concept from 2008. Except where the V4 was slim and sleek the VFR1200F is a little more portly and bulbous.

Weighing in at a fairly hefty 267 kgs (588 lb), the VFR1200F's 1,237 cc, 76 degree, V-4 engine with electronic throttle control produces 172 horsepower @ 10,000 rpm, and 129 Nm of torque @ 8,750 rpm . This is mounted in a twin-spar cast aluminum vacuum molded frame which is finished in a matt black color to disguise it against the engine and bodywork.

The VFR1200F's standard transmission is a six-speed gearbox. An optional extra is a dual-clutch, semi-automatic transmission which allows for full-auto mode, or manual clutchless shifting via finger-operated paddles. Final drive is via shaft.

The broad fairing and relatively high windscreen should provide plenty of protection against buffeting - although the bloated proportions seem to have given rise to the 'Shamu' nickname.

The 2010 Honda VFR1200F is available in red, white or silver paintwork.


2010 Honda VFR1200F specifications:

Engine Type: 4 cyl. V-4 at 76 4T LC SOHC 16-valve Unicam
Displacement: 1,237 d.c.
Bore x Stroke: 81.0 x 60.0 mm x 4
Compression ratio: 12 to 1
Max Power: 172.72 hp at 10,000 rpm
Maximum torque: 129 Nm / 8750 rpm
Idling speed 1050 to 1250 rpm
Crankcase capacity 4 liters
Power supply: PGM-FI electronic injection
Clutch: oil, wet
Clutch Operation: Hydraulic control
Gearbox: 6 gears
Final drive: shaft driven single-arm

Chassis Type: Double beam cast aluminum vacuum mold
Geometry direction: 25.5 degrees, 101 mm forward
Swingarm: single-arm aluminum driveshaft
Front Suspension: Inverted telescopic fork 41 mm, adjustable spring preload
Rear Suspension: Pro-Link HMAS gas shock, adjustable spring preload 25 positions
Front brake: 2 discs 320mm floating, 6-piston radial calipers
Rear brake: 1 disc 2 piston caliper 276mm
Brake System: Combined-ABS

Ignition system: Digital transistorized with electronic advance computerized control
Ignition Timing: 6.4 -10.4 BTDC (idle speed)
Sparkplug Type: IMR9E-9HES (NGK); VUH27ES (DENSO)
Starting: Electric Motor
Battery capacity: 12 V - 11.6 Ah (YTZ14)
Generator output: 560 W
Lighthouses: 2 x H7 (2x 55 W)
Rear: Double Light 21 / 5 W
