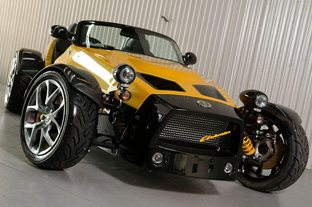

Elfin Type 5

Elfin Type 5

Elfin Type 5

Elfin Type 5

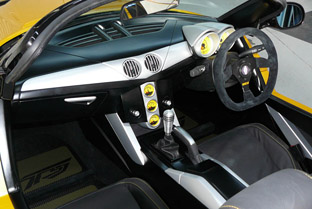

Elfin Type 5 interior

Elfin Type 5

Elfin Type 5

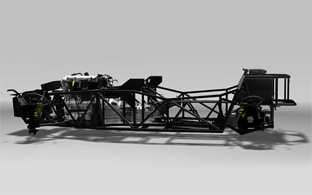

Elfin Type 5 chassis

Elfin Type 5

Year 2008
Engine 2.0 litre, 4 cylinder, turbocharged
Transmission 5 - speed manual RWD
Max speed -
0-60 mph 3.7 seconds
Horsepower 260 hp @ 5,300 rpm
weight 750 kg / 1650 lbs

The Elfin Type 5 is a lightweight sports car which was revealed at the 2008 Sydney Motor Show.

Unlike the Elfin MS8 Clubman and MS8 Streamliner which are V8 powered cars the Type 5 is powered by a turbocharged four cylinder engine. This unit develops 260 horsepower @ 5,300 rpm, and 258 lb-ft of torque @ 2,500 - 5,300 rpm. Transferring the power to the rear wheels is a five speed manual transmission.

Underneath the minimalist, yet smartly styled fiberglass body of the Elfin Type 5 lies a computer designed multi-tubular spaceframe with laser cut tubing and brackets. The aluminium inner panels are also laser cut.

The front suspension of the Elfin Type 5 is handled by fully independent wishbone units with coilover shock absorbers. At the rear are also independent wishbones. Both front and rear wheels are adjustable for camber and toe.

The braking is taken care of with 298 mm vented discs and two-piston calipers up front, and 290 mm discs at the rear.

Inside, the Elfin Type 5 features a full instrument cluster with speedometer, tachometer, voltage, oil pressure and fuel level gauges. The leather wrapped race-style steering wheel is mounted to a four-way adjustable steering column. Supportive sports seats round out the interior appointments.
