RUF CTR 3

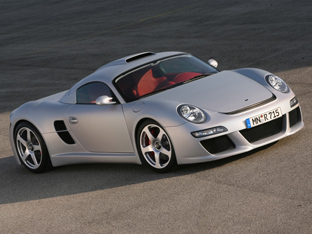

RUF CTR 3

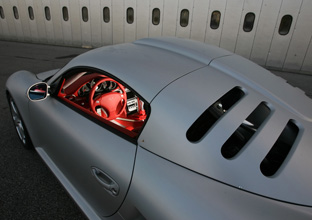

RUF CTR 3

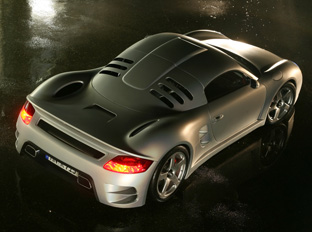

RUF CTR 3

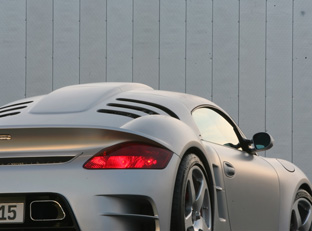

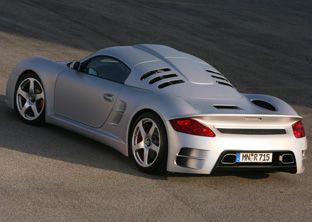

RUF CTR 3

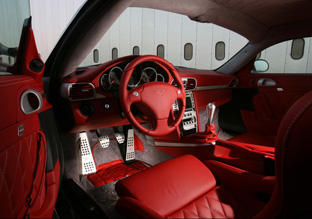

RUF CTR 3 interior

Year 2007
Engine 3800 cc, flat 6, twin turbo
Transmission 6-speed sequential manual, RWD
Max speed 235 mph
0-60 mph 3.2 seconds
Horsepower 700 bhp @ 7000 rpm
weight 1400 kg / 3086 lbs

The 2007 CTR3 from renowned Porsche tuners RUF is a bespoke supercar built from steel, aluminium and carbon-Kevlar. The front structure and passenger compartment of the CTR3 are formed from zinc dipped steel, the body shell is a carbon-Kevlar composite structure, the doors and bonnet are aluminium and the engine and transmission are housed in a space frame and birdcage structure which also features rollover protection as do the A-pillars.

Powering the RUF CTR 3 is a 3.8 litre, twin-turbo
boxer 6 cylinder engine developing a massive 700 horsepower @ 7000 rpm and over 656 lb-ft of torque. Power is then run through a 6-speed sequential manual gearbox to the 20" rear wheels (up front are 19" units). All this gives the RUF CTR 3 a 0-60 mph time of just 3.2 seconds and a 235 mph top speed.

2007 RUF CTR 3 Specifications:

RUF CTR 3 Engine
Type: turbocharged boxer
cylinders: 6
Displacement: 3,746 cc / 228.6 in3
bore: 102 mm / 4.01 in
Stroke: 76.4 mm / 3.01 in
Output: 515 kW (700 hp) at 7,000 rpm
Max. torque: 890 Nm / 656.5 lb-ft
Compression ratio: 9.2 : 1
Engine control unit: Bosch Motronic with OBD-2
Turbo charger: two KKK turbo chargers
Intercooler: two air-air-intercoolers

RUF CTR 3 Transmission
Power delivery: rear wheel drive
Transmission: sequential 6-speed-manual transmission, transversal, angle drive, shift indicator in the instrument panel
Limited slip differential: multi-disc locking differential
Locking value load / deceleration: 40 % / 60 %

RUF CTR 3 Chassis
Front axle: McPherson struts, anti-roll bar
Rear axle: multilink rear axle, anti-roll bar, horizontal coil over shock absorbers
Steering: Power assisted rack and pinion

RUF CTR 3 Brakes
Calipers front/rear: 6 piston fixed light alloy
Discs front/rear: ventilated and cross drilled ceramic composite discs
Brake disc diameter front/rear: 380 mm / 15 in / 380 mm / 15 in
Anti-lock braking system: Bosch ABS 8.0

RUF CTR 3 Size and weights
Length: 4,445 mm / 175.0 in
Width: 1,944 mm / 76.5 in
Height : 1,200 mm / 47.2 in
Wheelbase: 2,625 mm / 103.3 in
Front track: 1,506 mm / 59.3 in
Rear track: 1,585 mm / 62.4 in
